In a real-world DevOps environment, notifications are not just about sending messages — they must be:

• Structured
• Contextual
• Reliable
• Maintainable

This guide demonstrates a production-ready approach to integrating Slack notifications with Jenkins, using:

• Block Kit templates
• Shared libraries
• Error handling
• Approval workflows

Architecture Overview

The solution is built around three core components:

1. Slack templates (Block Kit JSON)
2. Jenkins Shared Library
3. Pipeline orchestration

This separation ensures:

• Clean code
• Reusability
• Easy maintenance

Slack Message Templates (Block Kit)

In most Jenkins + Slack integrations, messages are built inline using raw JSON or simple text.

That approach works initially, but quickly becomes difficult to maintain as complexity grows.

Instead, this setup uses Slack Block Kit templates stored as external JSON files, which are dynamically rendered at runtime.

Why Use Templates Instead of Inline Messages

Embedding Slack payloads directly in Jenkins pipelines creates several problems:

• Pipelines become cluttered with JSON
• Message formats are duplicated across jobs
• Small changes require editing multiple pipelines
• Debugging becomes harder

By externalizing templates:

• Message structure is centralized
• Pipelines remain clean and readable
• Changes are applied globally
• Templates can be versioned alongside code

What is Slack Block Kit

Slack provides a structured message system called Block Kit.

Instead of plain text, messages are composed of blocks such as:

• section → main content
• fields → structured data
• context → metadata (timestamps, links)
• actions → buttons and interactions
• image → visual elements

How Templates Work in This Setup

Each message is defined as a JSON file with placeholders:

  { "text": "*Service:*\n${service}" },
  { "text": "*Environment:*\n${environment}" },
  { "text": "*Error:*\n${errorMessage}" }

  { "text": "*Service:*\n${service}" },
  { "text": "*Environment:*\n${environment}" },
  { "text": "*Error:*\n${errorMessage}" }

At runtime:

1. The template is loaded from the shared library
2. Placeholders like ${service}, ${environment}, ${errorMessage}, etc are replaced on Shared Lib slackNotify
3. The final JSON is sent to Slack

This allows the same template to be reused across different pipelines.

Shared Library — Slack Sender

The core logic is centralized in a shared function:

 def call(Map config) {
    def templateName = config.template
    def slackWebhookURL = config.slackWebhookURL
    def data = config.data ?: [:]

    def template = libraryResource("slack/${templateName}.json")
    def payload = renderTemplate(template, data)

    sh(
        script: """
            curl -s -X POST -H 'Content-type: application/json' \
            --data '${payload}' \
            ${slackWebhookURL}
        """,
        label: "Send Slack notification"
    )
}

 def call(Map config) {
    def templateName = config.template
    def slackWebhookURL = config.slackWebhookURL
    def data = config.data ?: [:]

    def template = libraryResource("slack/${templateName}.json")
    def payload = renderTemplate(template, data)

    sh(
        script: """
            curl -s -X POST -H 'Content-type: application/json' \
            --data '${payload}' \
            ${slackWebhookURL}
        """,
        label: "Send Slack notification"
    )
}

Full implementation: https://github.com/faustobranco/devops-db/blob/master/infrastructure/lib-utilities/vars/slackNotify.groovy

Key Design Decisions

• template → defines message type
• data → dynamic values
• slackWebhookURL → configuration (not mixed with data)

This separation keeps the interface clean and predictable.

Template Rendering Strategy

Templates use simple variable replacement:

result = result.replace("\${${key}}", value.toString())

result = result.replace("\${${key}}", value.toString())

This approach is:

• Lightweight
• Fast
• Easy to debug

Jenkins Pipeline Integration

The pipeline orchestrates the full workflow:

Full pipeline: https://github.com/faustobranco/devops-db/tree/master/infrastructure/pipelines/deployment

Validation Stage

Fail early with explicit error message:

if (!params.APPLICATION_VERSION?.trim()) {
    env.ERROR_MESSAGE = "APPLICATION_VERSION cannot be empty"
    error(env.ERROR_MESSAGE)
}

if (!params.APPLICATION_VERSION?.trim()) {
    env.ERROR_MESSAGE = "APPLICATION_VERSION cannot be empty"
    error(env.ERROR_MESSAGE)
}

Why this matters

Jenkins does not expose error messages in post { failure }.

Solution:

• Store error in env.ERROR_MESSAGE
• Reuse later in notifications

Error Handling Strategy

In the failure block:

def errorMessage = env.ERROR_MESSAGE?.trim() ?
                   env.ERROR_MESSAGE :
                   "FAILED for any reason"

def errorMessage = env.ERROR_MESSAGE?.trim() ?
                   env.ERROR_MESSAGE :
                   "FAILED for any reason"

Benefits

• Always shows meaningful error
• Avoids empty or generic alerts
• Works across all failure types

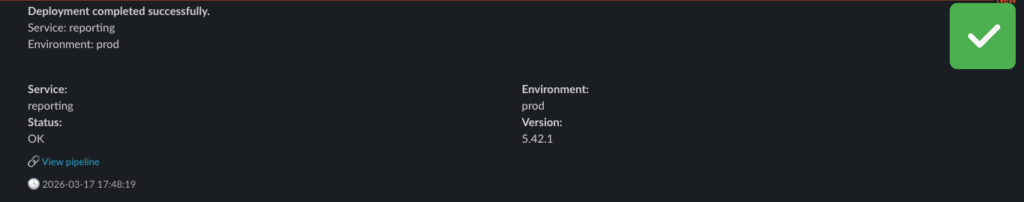

Success Notifications

Example template: https://github.com/faustobranco/devops-db/blob/master/infrastructure/lib-utilities/resources/slack/deployment_success.json

Includes:

• Service
• Environment
• Version
• Pipeline link
• Timestamp

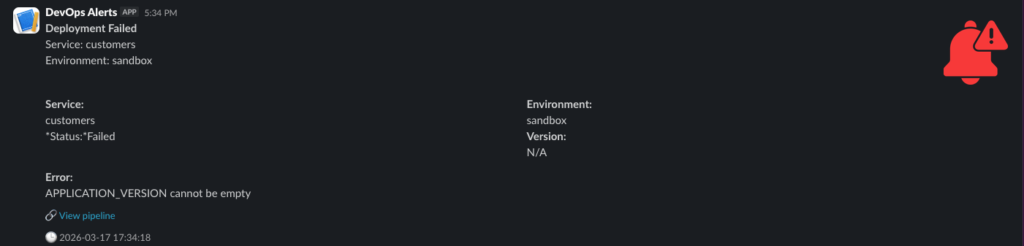

Failure Notifications

Example: https://github.com/faustobranco/devops-db/blob/master/infrastructure/lib-utilities/resources/slack/deployment_failed.json

Includes:

• Structured error message
• Context fields
• Direct link to pipeline

Approval Flow (Production Pattern)

For production deployments:

stage('APPROVAL REQUIRED') {
    when {
        expression { params.ENVIRONMENT == 'prod' }
    }
}

stage('APPROVAL REQUIRED') {
    when {
        expression { params.ENVIRONMENT == 'prod' }
    }
}

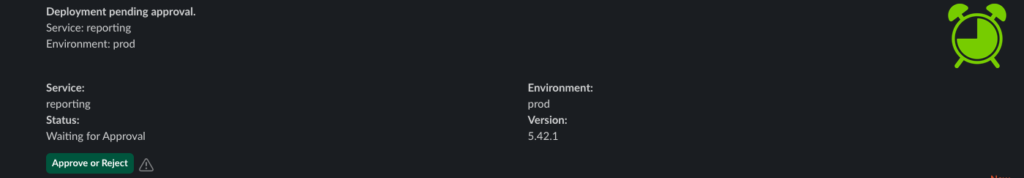

Slack Notification Before Approval

urlApproval: env.BUILD_URL + "input"

urlApproval: env.BUILD_URL + "input"

Template Example

https://github.com/faustobranco/devops-db/blob/master/infrastructure/lib-utilities/resources/slack/deployment_approval.json

This generates a Slack message with:

• Context (service, environment, version)
• Button → “Approve or Reject”

Important Limitation

Slack cannot directly approve/reject Jenkins builds.

The button redirects to:

${BUILD_URL}/input

${BUILD_URL}/input

Where the user performs the action.

Why This Approach Works

This architecture provides:

Separation of Concerns

• Templates → presentation
• Shared lib → logic
• Pipeline → orchestration

Reusability

• Same templates across pipelines
• Same function across projects

Maintainability

• Change message format without touching pipelines
• Centralized logic

Observability

• Structured alerts
• Direct pipeline links
• Clear error messages

Production Considerations

1. Do not break pipeline on Slack failure

Use:

returnStatus: true

returnStatus: true

2. Avoid leaking secrets

Always use:

withCredentials(...)

withCredentials(...)

3. Keep templates simple

Slack rendering can be inconsistent with complex layouts.

4. Standardize messages

Use consistent fields across:

• success
• failure
• approval

Final Result

With this setup, Slack becomes:

• A real-time deployment dashboard
• A control point for approvals
• A debugging aid with contextual errors
