ArgoCD in Practice: Installation, GitOps Workflow, and Canary Deployment with Helm

Introduction

ArgoCD is often introduced as a “deployment tool for Kubernetes”.
That definition is incomplete — and misleading.

ArgoCD is not a deployment engine.
It is a GitOps controller.

This article explains not only how to install and use ArgoCD, but why each step exists, and how it fits into a real-world architecture.

1. What ArgoCD Is (and Is NOT)

Definition

ArgoCD is a state reconciliation system.

Git = desired state
Cluster = actual state
ArgoCD = reconciler

What ArgoCD Does

  • ✔ Reads Git repositories
  • ✔ Renders manifests (Helm, YAML, Kustomize)
  • ✔ Applies them to Kubernetes
  • ✔ Continuously ensures consistency

What ArgoCD Does NOT Do

ArgoCD does not perform progressive rollouts.

It does NOT:

Responsibility Model

ArgoCD → applies state
Helm → defines configuration
Ingress → controls traffic
Rollout logic → YOU (or Argo Rollouts)

2. DNS — Why It Matters

Without DNS:

http://192.168.1.10:8080 ❌

With DNS:

https://argocd.devops-db.internal ✔

nslookup argocd.devops-db.internal
Server:		100.64.0.1
Address:	100.64.0.1#53

Name:	argocd.devops-db.internal
Address: 172.21.5.241

Why DNS Is Important

  • ✔ Human-readable
  • ✔ Required for TLS
  • ✔ Required for SSO
  • ✔ Matches production environments

3. Installing ArgoCD

Note on TLS and Authentication

When exposing ArgoCD via Ingress, it is strongly recommended to enable HTTPS using a valid TLS certificate (e.g., via cert-manager).

Authentication flows handled by Dex (such as LDAP, OIDC, etc.) rely on browser cookies and strict redirect URL validation. These mechanisms are inherently sensitive to protocol mismatches and may fail when using plain HTTP.

Without TLS, you may encounter issues such as:

  • http: named cookie not present
  • Invalid redirect URL

Enabling HTTPS ensures:

  • Reliable session handling (cookies)
  • Correct redirect URI validation
  • Compatibility with modern browser security policies

For this reason, TLS should be considered a requirement rather than an optional enhancement when enabling external authentication in ArgoCD.

How to: Security – Configuring TLS Certificates with Step-CA for Nexus, Jenkins, GitLab and Vault

While the install.yaml method provides a quick way to bootstrap ArgoCD, it lacks lifecycle management and reproducibility. A Helm-based installation, on the other hand, introduces structure, versioning, and controlled upgrades — all critical aspects in real-world environments.

The first step is to add the official Argo Helm repository:

helm repo add argo https://argoproj.github.io/argo-helm
helm repo update

This ensures that we are installing ArgoCD from a maintained and versioned source, rather than relying on static manifests.

Defining the installation (values.yaml)

https://github.com/faustobranco/devops-db/tree/master/infrastructure/helms/argocd

Instead of applying raw manifests, Helm allows us to define the desired state declaratively via a values.yaml file. This becomes the single source of truth for the ArgoCD installation itself.

crds:
  install: true

global:
  domain: argocd.devops-db.internal

configs:
  params:
    server.insecure: true
  cm:
    url: https://argocd.devops-db.internal

server:
  ingress:
    enabled: true
    annotations:
      cert-manager.io/cluster-issuer: step-ca-issuer
    tls:
      - hosts:
          - argocd.devops-db.internal
        secretName: argocd-tls
    ingressClassName: nginx
    hosts:
      - argocd.devops-db.internal
    paths:
      - /
    pathType: Prefix
  service:
    type: ClusterIP

controller:
  replicas: 1

repoServer:
  replicas: 1

applicationSet:
  enabled: true

redis:
  enabled: true
  master:
    persistence:
      enabled: true
      size: 10Gi

Key design decisions

This configuration is intentionally minimal, but each field serves a specific purpose:

  • crds.install: true
    Ensures that all required Custom Resource Definitions (Applications, AppProjects, ApplicationSets) are installed alongside ArgoCD. This avoids common runtime failures where controllers start before CRDs exist.
  • global.domain + configs.cm.url
    These must be aligned with the external access point. ArgoCD uses this value for generating links, callbacks, and UI redirects.
  • server.insecure: true
    Disables TLS at the ArgoCD server level. This is acceptable because TLS termination is delegated to the Ingress layer (or postponed entirely during initial setup).
  • Ingress configuration
    Exposes ArgoCD externally using a Kubernetes-native entrypoint. This avoids reliance on port-forwarding and makes the setup immediately usable in a shared environment.
  • Redis persistence enabled
    Although Redis is not a source of truth, enabling persistence improves stability and avoids cache cold starts after restarts.
  • ApplicationSet enabled
    Activates the controller required for managing dynamic application generation patterns (e.g., multi-cluster or multi-env setups).

Installing ArgoCD

With the configuration defined, the installation becomes a single reproducible command:

helm upgrade --install argocd argo/argo-cd \
  -n argocd \
  --create-namespace \
  -f values.yaml

This command is idempotent:

  • If ArgoCD is not installed → it installs it
  • If it already exists → it upgrades it

This is a key advantage over raw manifests, where updates can be unpredictable.

4. Verification

Once installed, validation should be done at multiple layers to ensure the system is fully operational.

Verify Ingress exposure

kubectl get ingress -n argocd
NAME            CLASS   HOSTS                       ADDRESS     PORTS   AGE
argocd-server   nginx   argocd.devops-db.internal   127.0.0.1   80      13m

Then validate connectivity:

curl -I http://argocd.devops-db.internal
HTTP/1.1 200 OK
Date: Wed, 25 Mar 2026 09:22:51 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 788
Connection: keep-alive
Accept-Ranges: bytes
Content-Security-Policy: frame-ancestors 'self';
Vary: Accept-Encoding
X-Frame-Options: sameorigin
X-Xss-Protection: 1

This confirms that:

  • DNS (or /etc/hosts) is correctly configured
  • Ingress controller is routing traffic
  • ArgoCD server is reachable

Command

kubectl create namespace argocd

kubectl apply -n argocd \
  -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

What This Actually Installs

✔ argocd-server (API/UI)
✔ argocd-repo-server (Git + Helm rendering)
✔ argocd-application-controller (reconciliation engine)
✔ redis (cache)
✔ dex (authentication)

Why Installation Is Minimal

ArgoCD deliberately does NOT install:

  • Ingress
  • DNS
  • TLS certificates
  • Storage backends

Why?

Because those belong to infrastructure, not to the application layer

3. Exposing ArgoCD — Why You Need an Ingress

Problem

After installation:

kubectl get svc argocd-server -n argocd

You get:

TYPE: ClusterIP

Meaning

ClusterIP = internal-only service

You cannot access it from:

  • browser
  • external tools
  • DNS

Solution: Ingress

kubectl apply -f - <<EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: argocd
  namespace: argocd
  annotations:
    nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
spec:
  ingressClassName: nginx
  rules:
    - host: argocd.devops-db.internal
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: argocd-server
                port:
                  number: 443
EOF

For this example, I created another DNS server in our Bind9 and pointed it to the IP address of our LB (MetalLB).

nslookup argocd.devops-db.internal
Server:		100.64.0.1
Address:	100.64.0.1#53

Name:	argocd.devops-db.internal
Address: 172.21.5.241

Why ArgoCD Does NOT Create an Ingress

Because: Ingress is not standard across clusters

Different environments use:

  • nginx
  • traefik
  • istio
  • cloud load balancers

If ArgoCD created one:

would assume a controller
could break environments
would violate separation of concerns

Conclusion

Ingress belongs to infrastructure, not to ArgoCD

5. TLS Certificates — Why ArgoCD Doesn’t Handle Them

TLS is required for:

  • authentication
  • secure API calls
  • browser compatibility

Why ArgoCD Doesn’t Create Certificates

Because:

TLS depends on cluster-specific tooling

Examples:

  • cert-manager
  • internal CA
  • cloud provider certificates

Correct Responsibility

certificates = infrastructure layer

6. Accessing ArgoCD

Get Admin Password

kubectl -n argocd get secret argocd-initial-admin-secret \
  -o jsonpath="{.data.password}" | base64 -d

Why This Exists

ArgoCD generates credentials dynamically to:

✔ avoid hardcoded secrets
✔ improve security

CLI Installation

brew install argocd

Authenticate via CLI

argocd login argocd.devops-db.internal --insecure --grpc-web

Two flags are important here:

  • --insecure → required because TLS is not enabled
  • --grpc-web → ensures compatibility with Ingress (which typically does not support raw gRPC without additional configuration)

Update admin password

argocd account update-password

This replaces the bootstrap credential with a secure one and updates the internal secret (argocd-secret).

7. Git Repository Structure — Why It Matters

.
├── README.md
├── argocd
│   ├── devops-api-canary.yaml
│   └── devops-api-stable.yaml
├── envs
│   └── dev
│       ├── values-canary.yaml
│       └── values-stable.yaml
└── helm
    └── devops-api
        ├── Chart.yaml
        ├── charts
        └── templates
            ├── configmap.yaml
            ├── deployment.yaml
            ├── ingress-canary.yaml
            ├── ingress.yaml
            ├── secret.yaml
            └── service.yaml

Why This Separation Exists

Chart ≠ Environment ≠ Deployment

Breakdown

helm/

Application logic (reusable)

envs/

Environment-specific configuration

argocd/

Deployment definitions (Applications)

Why This Is Critical

Avoids:

duplication
tight coupling
environment leakage

8. Connecting GitLab — TLS and .git

Problem

x509: certificate signed by unknown authority

Why This Happens

ArgoCD runs inside Kubernetes and does NOT trust:

your local CA

Correct Fix

openssl s_client -showcerts -connect gitlab.devops-db.internal:443 </dev/null \
  | openssl x509 -outform PEM > gitlab.crt

kubectl create configmap argocd-tls-certs-cm -n argocd \
  --from-file=gitlab.devops-db.internal=gitlab.crt

kubectl rollout restart deployment argocd-repo-server -n argocd

Important Detail

Always use the full URL of your repository, ending with .git, for example:

https://gitlab.devops-db.internal/infrastructure/argocd/devops-api.git

Why?

ArgoCD does NOT follow redirects:

Git CLI → follows redirect ✔
ArgoCD → does NOT

9. Creating a Project — Why It Exists

kubectl apply -f - <<EOF
apiVersion: argoproj.io/v1alpha1
kind: AppProject
metadata:
  name: devops-api
  namespace: argocd
spec:
  description: DevOps API Project

  sourceRepos:
    - '*'

  destinations:
    - namespace: devops-api
      server: https://kubernetes.default.svc

  clusterResourceWhitelist:
    - group: '*'
      kind: '*'

  namespaceResourceWhitelist:
    - group: '*'
      kind: '*'
EOF

Purpose

Security and isolation boundary

Defines:

  • allowed repositories
  • allowed namespaces
  • cluster access

Why This Matters

Prevents:

accidental deployments
cross-team interference

10. Creating Applications

What an Application Is

"Deployment definition"

Key Fields Explained

source:
  repoURL: Git source
  path: where Helm chart is
  targetRevision: branch

destination:
  namespace: where to deploy

syncPolicy:
  automated: enable GitOps


devops-api-stable.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: devops-api-stable
  namespace: argocd
spec:
  project: devops-api

  source:
    repoURL: https://gitlab.devops-db.internal/infrastructure/argocd/devops-api.git
    targetRevision: HEAD
    path: helm/devops-api
    helm:
      valueFiles:
        - ../../envs/dev/values-stable.yaml

  destination:
    server: https://kubernetes.default.svc
    namespace: devops-api

  syncPolicy:
    automated:
      prune: true
      selfHeal: true

and

devops-api-canary.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: devops-api-canary
  namespace: argocd
spec:
  project: devops-api

  source:
    repoURL: https://gitlab.devops-db.internal/infrastructure/argocd/devops-api.git
    targetRevision: HEAD
    path: helm/devops-api
    helm:
      valueFiles:
        - ../../envs/dev/values-canary.yaml

  destination:
    server: https://kubernetes.default.svc
    namespace: devops-api

  syncPolicy:
    automated:
      prune: true
      selfHeal: true

Why valueFiles Path Matters

- ../../envs/dev/values-stable.yaml

Because:

paths are relative to the chart directory

11. Automatic Sync — Why It’s Not Instant

Required Config

syncPolicy:
  automated:
    prune: true
    selfHeal: true

Why It Still Delays

ArgoCD uses:

polling (~3 minutes)

Solution: Webhook

Git push → ArgoCD webhook → instant sync

Why Webhook Is Better

✔ real-time
✔ no polling delay
✔ scalable

12. Canary Deployments — What Actually Controls Traffic

Important Truth

ArgoCD does NOT know what a canary is

Our Setup

NGINX Ingress + annotations

Example

nginx.ingress.kubernetes.io/canary-weight: "50"

Who Controls Traffic?

Ingress controller (nginx)

Who Defines It?

Helm values

Who Applies It?

ArgoCD

13. Can ArgoCD Show Canary Percentage?

No.

Why?

Because:

ArgoCD sees YAML, not intent

It does NOT understand:

  • canary
  • rollout
  • traffic splitting

Where to Check

kubectl describe ingress devops-api-canary

14. Rollout Strategies — Where Logic Lives

Option 1 — Manual (Git-driven)

commit → change weight → ArgoCD applies

Option 2 — Automation

script → commit → push

Option 3 — Argo Rollouts

controller handles progression

Key Insight

ArgoCD executes — it does not decide

15. Critical Pitfall — Resource Ownership

Problem

If resources already exist:

ArgoCD will NOT take control

Why?

ArgoCD is declarative, not invasive

Solution

kubectl delete all --all -n devops-api

Then:

ArgoCD becomes the owner

16. Final Architecture

Git
 ↓
ArgoCD (sync)
 ↓
Helm (render)
 ↓
Kubernetes
 ↓
Ingress (traffic split)

17. Canary Rollout in Practice — End-to-End Flow

At this stage, the system is fully operational:

  • ArgoCD is connected to Git
  • Applications (stable + canary) are deployed
  • Ingress is configured for traffic splitting

Now we validate the most important concept:

Git → change → ArgoCD → cluster → real traffic impact

Step 1 — Modify Canary Weight

Edit: envs/dev/values-canary.yaml

Change:

traffic:
  stable: 50
  canary: 50

Why this works

This value is consumed by Helm and rendered into:

nginx.ingress.kubernetes.io/canary-weight: "50"

Which means:

50% of traffic → canary
50% → stable

Step 2 — Commit and Push

git commit -am "increase canary to 50%"
git push

Why this triggers deployment

Because:

Git = source of truth
ArgoCD = reconciler

If webhook is configured: sync is immediate

Otherwise: sync occurs within ~3 minutes (polling)

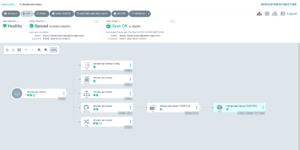

Step 3 — Observe ArgoCD UI

In ArgoCD:

Application → devops-api-canary
No Caption
No Caption

You can also do it via argo cli:

argocd app get devops-api-canary --grpc-web
Name:               argocd/devops-api-canary
Project:            devops-api
Server:             https://kubernetes.default.svc
Namespace:          devops-api
URL:                https://argocd.devops-db.internal/applications/devops-api-canary
Source:
- Repo:             https://gitlab.devops-db.internal/infrastructure/argocd/devops-api.git
  Target:           HEAD
  Path:             helm/devops-api
  Helm Values:      ../../envs/dev/values-canary.yaml
SyncWindow:         Sync Allowed
Sync Policy:        Automated (Prune)
Sync Status:        Synced to HEAD (97089dd)
Health Status:      Healthy

GROUP              KIND        NAMESPACE   NAME                      STATUS  HEALTH   HOOK  MESSAGE
                   Secret      devops-api  devops-api-canary         Synced                 secret/devops-api-canary unchanged
                   ConfigMap   devops-api  devops-api-canary-config  Synced                 configmap/devops-api-canary-config unchanged
                   Service     devops-api  devops-api-canary         Synced  Healthy        service/devops-api-canary unchanged
apps               Deployment  devops-api  devops-api-canary         Synced  Healthy        deployment.apps/devops-api-canary unchanged
networking.k8s.io  Ingress     devops-api  devops-api-canary         Synced  Healthy        ingress.networking.k8s.io/devops-api-canary configured

Expected flow:

Synced → OutOfSync → Syncing → Synced

Why this happens

ArgoCD detects:

desired state (Git) ≠ current state (cluster)

So it:

re-renders Helm → appli

Step 4 — Validate Ingress Change

kubectl describe ingress devops-api-canary -n devops-api
Name:             devops-api-canary
Labels:           <none>
Namespace:        devops-api
Address:          127.0.0.1
Ingress Class:    nginx
Default backend:  <default>
Rules:
  Host                           Path  Backends
  ----                           ----  --------
  devops-api.devops-db.internal
                                 /   devops-api-canary:80 (10.1.137.170:8080)
Annotations:                     argocd.argoproj.io/tracking-id: devops-api-canary:networking.k8s.io/Ingress:devops-api/devops-api-canary
                                 nginx.ingress.kubernetes.io/canary: true
                                 nginx.ingress.kubernetes.io/canary-weight: 50
Events:
  Type    Reason  Age                 From                      Message
  ----    ------  ----                ----                      -------
  Normal  Sync    3s (x5 over 3h43m)  nginx-ingress-controller  Scheduled for sync

Why this matters

This is the actual control point of traffic.

Not ArgoCD.
Not Helm.

👉 The Ingress controller enforces traffic distribution.

Step 5 — Real Traffic Test

Run:

for i in {1..20}; do curl -s "http://devops-api.devops-db.internal/version"; echo; done
{"version":"v1.1.1"}
{"version":"v1.1.1"}
{"version":"v1.1.1"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.1"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.1"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.1"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.1"}
{"version":"v1.1.1"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.1"}
{"version":"v1.1.2-canary"}
{"version":"v1.1.2-canary"}

Conclusion

ArgoCD is intentionally minimal because:

it solves ONE problem:
state reconciliation

Everything else:

✔ networking
✔ security
✔ rollout strategy
✔ observability

belongs outside of it.

Building and Distributing an RPM Package via Nexus YUM Repository: A Practical Deep Dive

Building and Distributing an RPM Package via Nexus YUM Repository: A Practical Deep Dive

Designing a Multi-Repository, Multi-Environment GitOps Architecture with ArgoCD

Designing a Multi-Repository, Multi-Environment GitOps Architecture with ArgoCD

Integrating LDAP Authentication in Argo CD: A Practical Deep Dive

Integrating LDAP Authentication in Argo CD: A Practical Deep Dive

GitLab Webhooks with ArgoCD: Instant GitOps Sync — Configuration

GitLab Webhooks with ArgoCD: Instant GitOps Sync — Configuration

Designing a Scalable Helm Platform with Subcharts: A Practical, Production-Ready Approach

Designing a Scalable Helm Platform with Subcharts: A Practical, Production-Ready Approach

Canary Deployments with Argo Rollouts: A Practical, Helm-Based Approach

Canary Deployments with Argo Rollouts: A Practical, Helm-Based Approach

Leave a Reply

Your email address will not be published. Required fields are marked *
